NSK Surgic AP-2 Implant Motor With S-Max SG20 Handpiece
US$3,499.00US$5,000.00 (-30%)

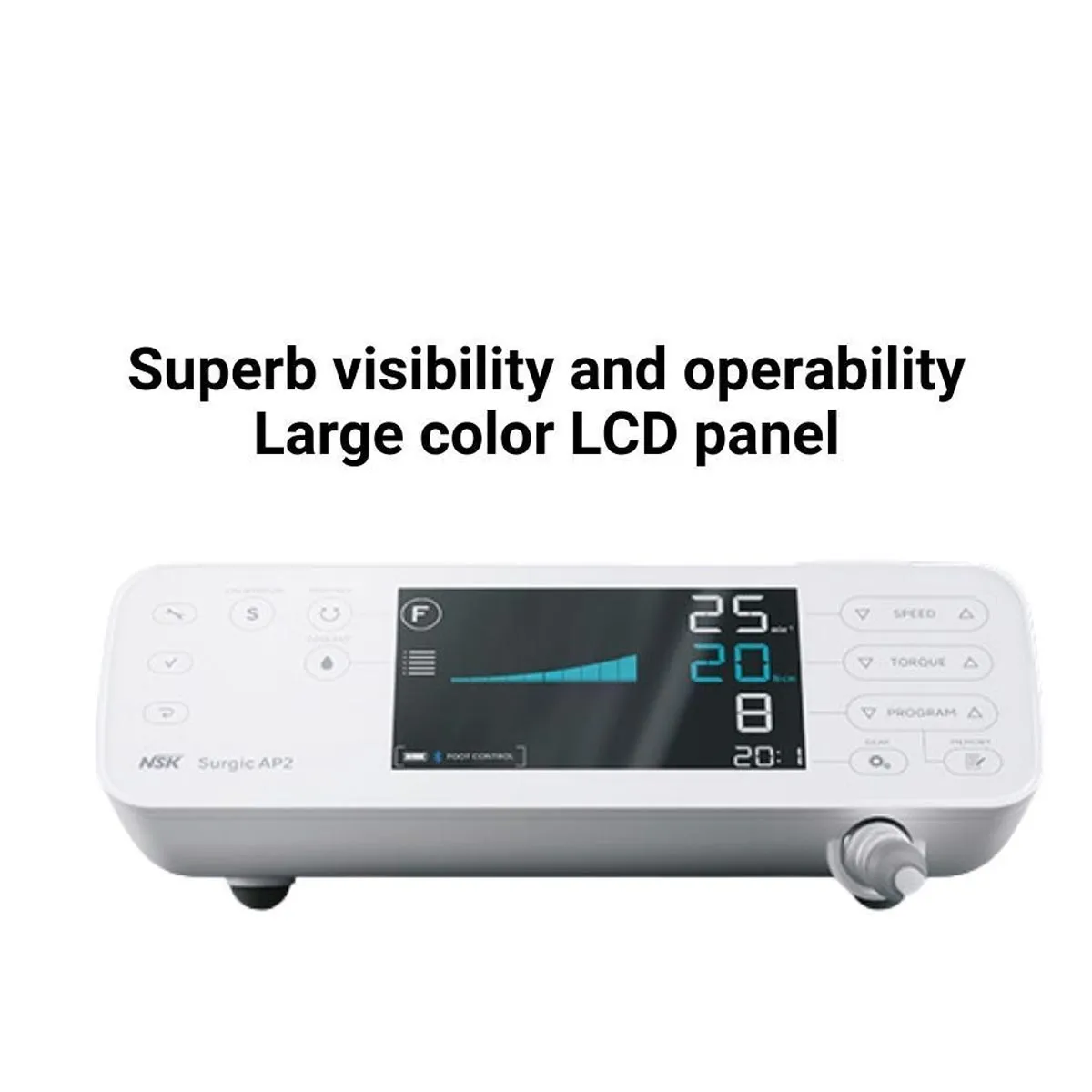

- Enhanced Visibility: Large color LCD panel provides clear visibility with adjustable brightness levels.
- Improved Operability: Compact design reduces strain and discomfort during prolonged use.
- Increased Torque: Maximum torque boosted to 80 Ncm for precise and efficient performance.
- Wireless Foot Control: Bluetooth® connectivity allows for easy adjustment of pedal positioning.
- Silent Irrigation Pump: Consistent flow ensures smooth operation without disrupting procedures.
NSK Surgic AP-2 Implant Motor With S-Max SG20 Handpiece
The NSK Surgic AP-2 Implant Motor with S-Max SG20 Handpiece is an advanced surgical micromotor system designed for optimal performance in dental implant procedures. It features the SG80MS motor, operating at speeds from 200 to 40,000 rpm, ensuring precise and efficient operation. The system’s ergonomic design includes a lightweight, compact handpiece, reducing practitioner strain and improving accessibility within the oral cavity.

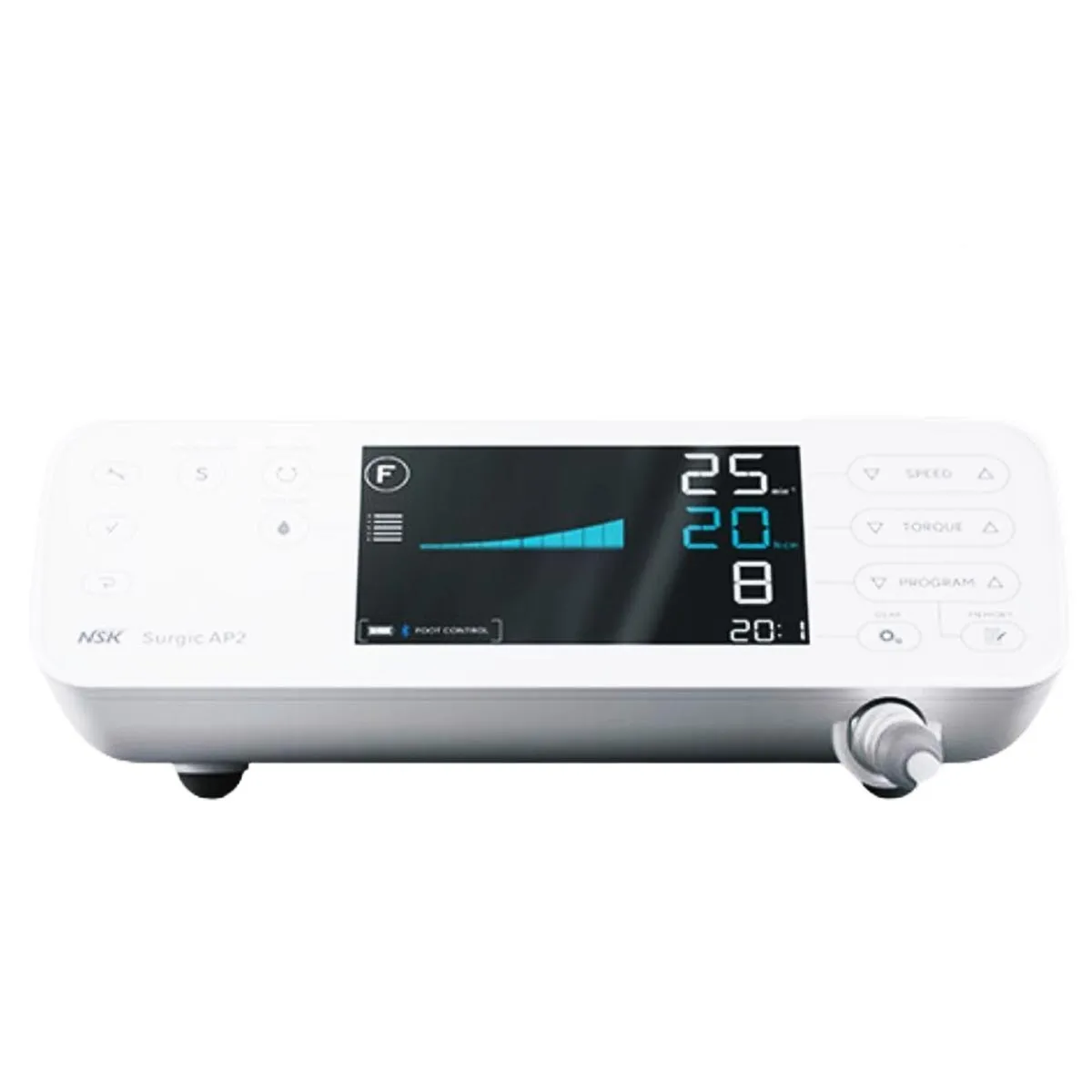

The large, high-contrast LCD panel offers excellent visibility and intuitive operation with adjustable brightness levels. The wireless foot control (FC-84) utilizes Bluetooth connectivity, allowing for flexible and convenient pedal positioning, enhancing control and focus during surgical procedures. The silent and smooth irrigation pump provides consistent coolant flow, ensuring patient comfort and procedural efficiency. Powered by an AC 230 V supply, the NSK Surgic AP-2 supports eight programmable settings, allowing customization to meet specific surgical needs.
Features :-
- Enhanced Visibility: Large color LCD panel provides clear visibility with adjustable brightness levels.
- Improved Operability: Compact design reduces strain and discomfort during prolonged use.
- Increased Torque: Maximum torque boosted to 80 Ncm for precise and efficient performance.
- Wireless Foot Control: Bluetooth® connectivity allows for easy adjustment of pedal positioning.
- Silent Irrigation Pump: Consistent flow ensures smooth operation without disrupting procedures.
- User-Friendly Interface: Intuitive icons on the LCD panel facilitate smooth and effortless operation.
- Compact and Elegant Design: Seamlessly integrates into surgical settings while minimizing clutter.
Key Specifications :-
Micromotor (SG80MS):
- Rotation Speed Range: 200 – 40,000 rpm
- Input Voltage: DC 36 V
- Dimensions: Ø23.5 x L82.6 mm (without motor cord)
- Cord Length: 2 m
- Optic: None

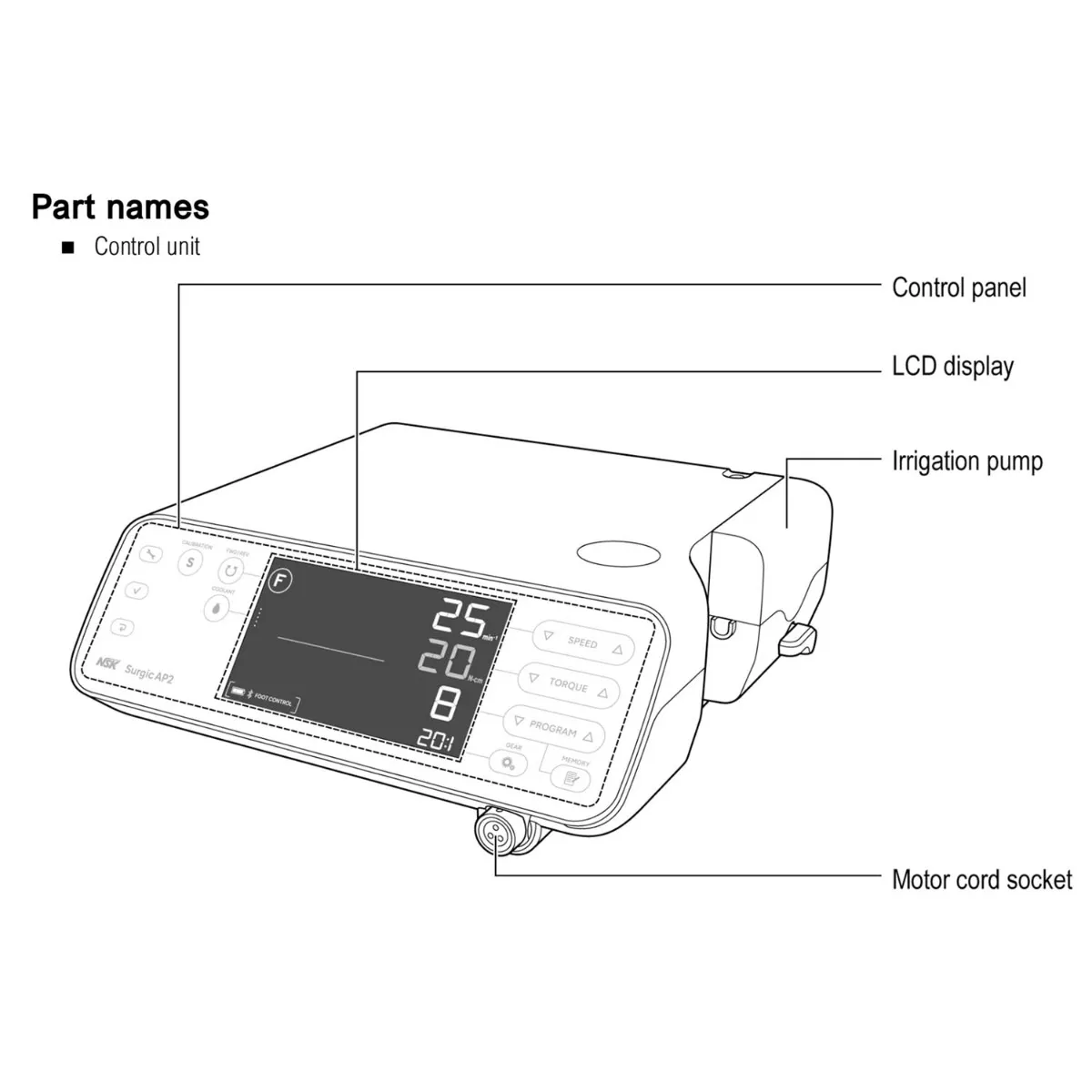

Control Unit:
- Power Supply: AC 230 V, 50/60 Hz
- Maximum Pump Output: 75 mL/min
- Programs: 8
- Dimensions: W 245 x D 235 x H 90 mm
Foot Control (FC-84):
- Power Source: Three AA/Mignon/LR6 1.5 V alkaline batteries
- Dimensions: W 155 x D 155 x H 149 mm
- Wireless Connectivity: Bluetooth
Bluetooth Specifications:
- Frequency Band: 2.4 GHz ISM band (2.402 – 2.480 GHz)
- Transmitting Power: Class 3, 1 mW
- Modulation: GFSK
- Channels: 40 channel, 2 MHz spacing
Packaging :-
- 1 x AC Power Cord
- 1 x Control Unit
- 1 x Coolant Solution Hanger Post
- 1 x Foot Control
- 1 x Non-Optic Motor (With Motor Cord)
- 1 x Handpiece Stand
- 3 x AA Alkaline Batteries
- 7 x Tube Holders
- 1 x Cleaning Wire
- 1 x Protection Plug
- 2 x O-Ring (Protection Plug)
- 2 x O-Ring (Motor)
- 1 x Non-Optic Handpiece
- 1 x E-Type Spray Nozzle
- 3 x Irrigation Tubes
Directions to Use :-
Connecting AC Power Cord:
- Align the AC power cord with the connector socket at the back of the control unit.
- Firmly insert the cord into the socket.
Installing Foot Control Batteries:
- Turn the battery cover counterclockwise to open.
- Insert three AA batteries, ensuring correct polarity.
- Close the cover by turning clockwise.
Mounting Coolant Solution Hanger Post:
- Attach the hanger post onto the holder on the control unit.
Installing Irrigation Tube:
- Close the tube clamp between the irrigation tube needle and the pump.
- Open the tube cap to allow air into the bottle.
- Insert the needle into the bottle cap.
- Open the tube clamp.
Connecting Motor Cord:
- Align marks on the motor cord and control unit.
- Push the cord plug until it clicks.
Connecting Handpiece:
- Push the handpiece straight onto the motor.
Irrigation Nozzle Attachment:
- Refer to the included operation manual for detailed installation.
System Checks Before Treatment:
- Ensure all components are securely connected.
- Verify the main power switch is in the OFF position before connecting to a power socket.
- Turn on the power switch, run the motor, and check for proper function.
Calibration and Operation:
- Attach the 20:1 reduction handpiece to the motor.
- Enter calibration mode by pressing the CALIBRATION button for 2 seconds.
- Perform speed calibration and ensure “PASS” is displayed.
- Follow the programming instructions to set operating parameters.
Sleep Mode:
- Sleep mode activates after inactivity to save battery.
- Wake by pressing the foot control pedal until the normal screen appears.
Pairing Foot Control:
- Enter setting mode and select “BLE SET.”
- Press the pairing button on the foot control.
- Confirm pairing by checking the display for “OK.”
Preparation for Use:
- Wear eye protection, a mask, and gloves.
- Confirm compatibility of components.
- Ensure proper irrigation flow and cleanliness.
